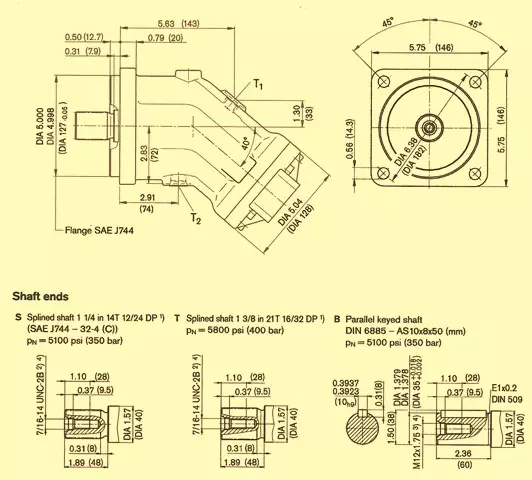

Rexroth Axial Piston Fixed Motor AA2FM/A2FM

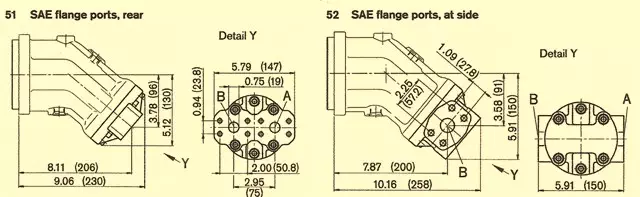

Ports

A/B Service line ports T1, T2 Case drain ports, T2 is plugged ISO 3/4 in – 16 UNF 2B .59 deep 120 lb ft 1) ANSI B92 1 A 1976 30 degree pressure angle, flat root, side fit, tolerance is class 5 2) Thread – ISO 68 3) Center bore is to DIN 332 , thread to DIN 13 4) Watch the torque you put on here…don’t do it to tight

Watch tightening up to tight.

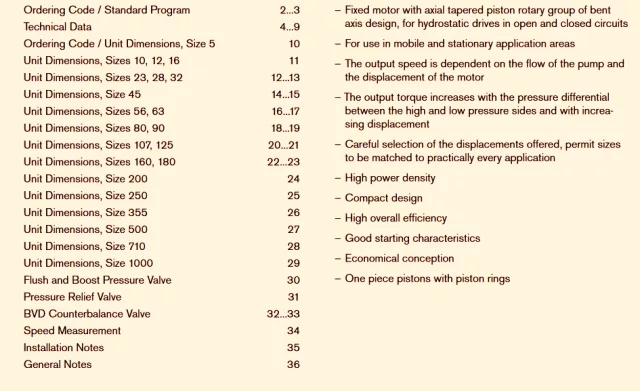

These are the features that are this unit.

If you need more info on this unit, call us at 662 -871-8403 or 800-361-0068

[email protected]
