Single & Multiple Stage Cylinders – Optional Mountings for Base/Rod Ends

Cylinders Optional Mountings

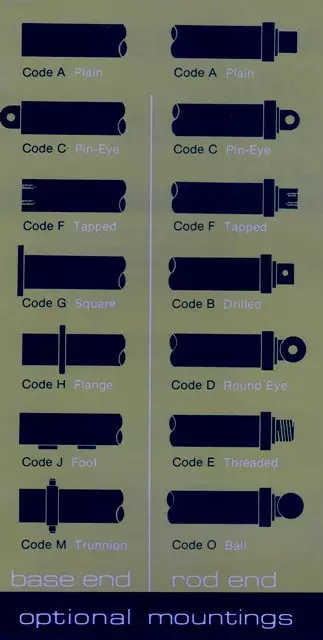

Single acting telescopic cylinders come in numerous combinations using the mountings on the diagram. If you use codes A & C they come standard. You can get the other mountings on special order. Give dimensions other than A & C when you talk to someone about the mounting styles.

Why it is good to give model numbers and dimensions when ordering: this is an example only.

S83CC-1-204 are C – pin eye on the base end and C – a pin eye on the rod end. All this makes for a smoother ordering process and helps the supplier help you better with your problems.

Always keep up with all tags and paperwork when you get a new cylinder.

If you need help with this, call us at 662-871-8403
