Spool Variety’s and Spool Control

/ 4 way valves, AS hydraulic cylinder, ASH hydraulic cylinder, ASL hydraulic cylinder, automatic drains, cessna, cylinder accessories, cylinder check, Cylinder Information, dowty hydraulic pumps and motors, dynapower, eaton, float drains, hall 300 series pumps and motors, hall H1500 Pump, hall series 101, hydraulic, hydraulic valves, impluse drains, M and 4 Series Amplifier Air Driven, motor, Neque, neutral lockout switch, packing, packing or seal kit, parker, pump, racine, radiators, reservoir, rexroth, rotary index table, seal kit, series 25 valves that are base mounted, Series 750 Hall pump/motor, series A heat exchanger, Series B Hydraulic Cylinders, series HSS cylinder, series k heat exchanger, series ss cylinders, small bore size cylinders, sundstrand, sundstrand sauer danfoss, swashplate bearing, tie rod end cylinder, torquemotor, valve in head cylinder, valve manifold, vane pump, Vane Pump Information, vee packing / By Susan Susan

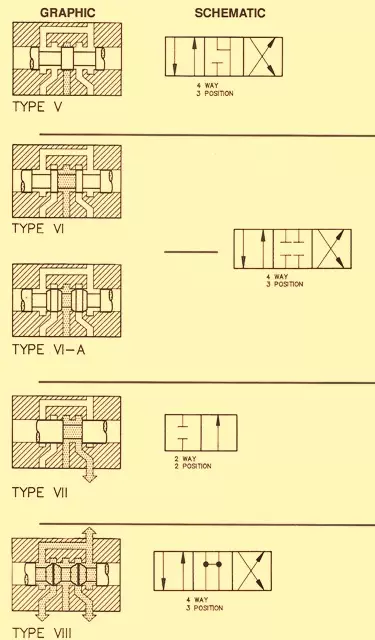

V – pressure block 3 way. cylinder goes to tank. the leaks want affect cylinder when it moves. Used in hand control remotely. Can use air and hydraulically. Cycle in cycle. Vl – square land servo. Has a blocked center with little definite lap. Only use is for sensing devices that will place spool using electric or mechanical applications. Air and hydraulic use. Cycle in cycle.
Vl A – tapered land servo. Blocked center- nominal zero lap. If you have a spool that needs positive or negative, it can be ordered that way. When it slows up a cylinder on a spool when it comes upon the center, means it will help with lowering the shock and instability. Only use is for sensing devices that will place spool using electric or mechanical applications.
Vll – selector – 2 way N.O. normally open 2 way normally closed N.C. 2 way selector Make sure it is marked that way on the ports. 4 port bodies. Hydraulic use. Cycle in cycle. Vlll – open center – 3 way All ports go to tank. It will work on neg. lap servo operations. hydraulic use. Cycle incycle

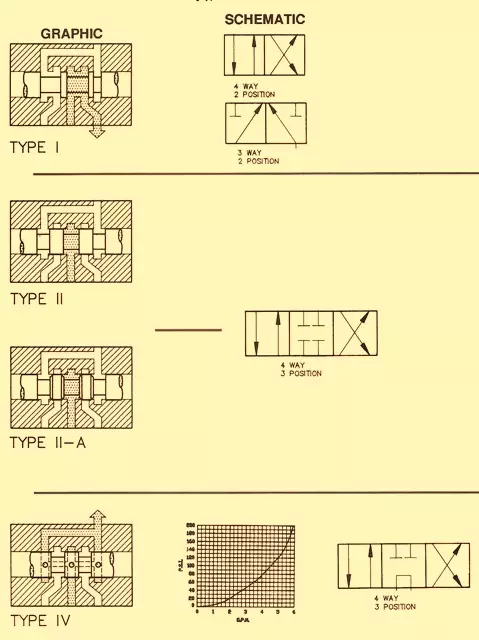

Type 1- 4/3 way that has 2 positions. Has a positive lap. Unless you order it a different way, type 1 will be used as it is stated. Can be used 3 way N. C. operations. Air & hydraulic uses. Cycle in cycle.
Type 2 – Closed center 3 ways. has an extended land spool. All ports whether blocked or inaccessible to center position. Works on conventional places and hold circuits. Air & hydraulic uses. Want go for long if used on air.
Type 2 A – Closed center 3 ways. has an extended land spool. All ports whether blocked or inaccessible to center position. Works on conventional places and hold circuits. Tapered lands will give a more straight lined flow and will give a better speed control. Air & hydraulic uses. Want go for long if used on air. Type lV – Pressure to tank 3 way. Cylinder ports are closed off. Pressure – tank. Can’t use in series circuit. Hydraulic use. Flow chart on the right displays psi. needed to make the gpm. thru center way on 1/8″ thru 1/2: valves.
