Vane Pump 40 Series Combo Pumps General Inforamtion

Listed below are the specs for this series of pump.

Vane pump 40 series

SAE threaded connection or 4 bolt flange come automatically on the pump

Pressure settings

SV-40 – 2000 PSI max outlet pressure

TV – 40 -1000 PSI max outlet pressure

Pressure compensating limits

SV – 40 – 400 to 2000 PSI

TV – 40 – 350 to 1000 PSI

Max case pressure – 10 PSi

Max Inlet vacuity

SV – 40 – 6 inches mercury gauge TV – TV 40 – 3 inches mercury gauge

Displacement

SV – 40 – 4 cipr

Flow Rate

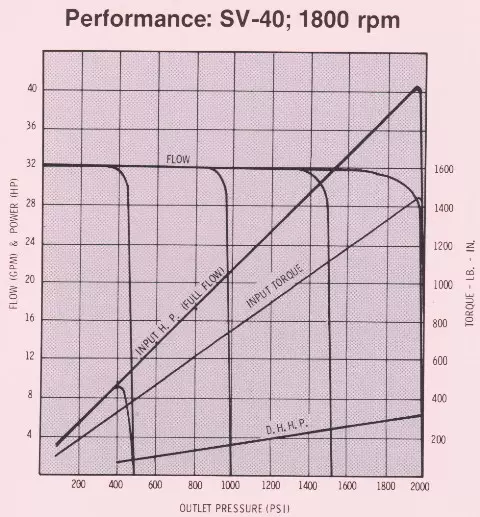

SV – 40 – 32 gpm at 1800 rpm & 150 PSI

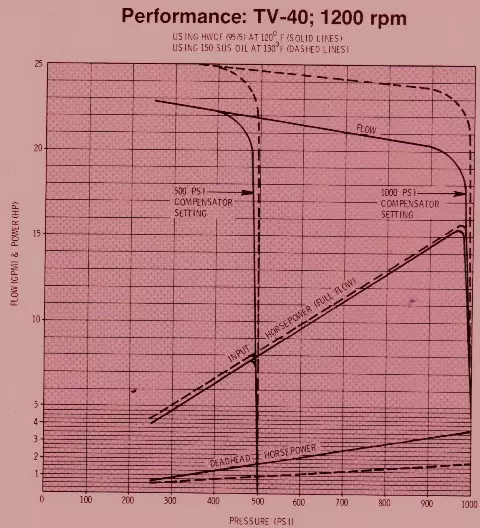

TV – 40 -27.5 gpm at 1800 rpm & 100 PSI

TV – 40 – 22 gpm at 1200 rpm & 100 PSI

Case Drain is normally 750 cipm while compensation is going on. Also the case drain needs to go the tank and below the reservoir fluid line.

Drive speed is 750 to 1800 rpm
