C Series Hydraulic Pump/Motor Combo’s

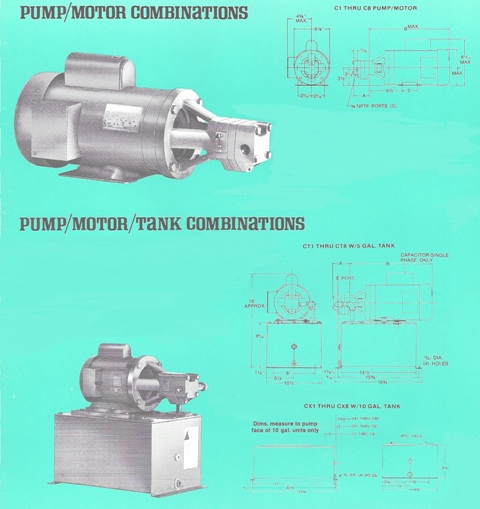

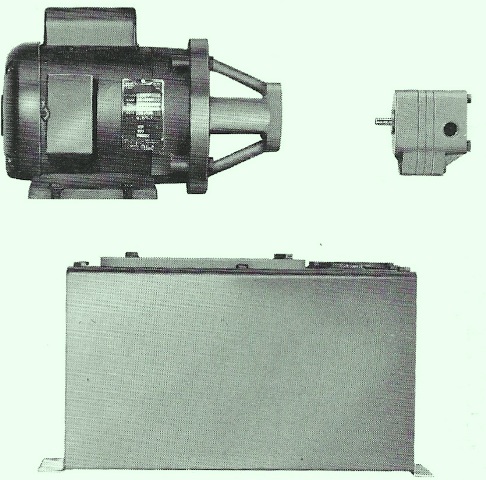

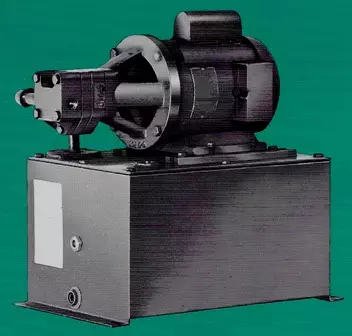

These are bi directional. To make sure these units stay lined up is done with an adaptor bracket. This unit is ball bearing enclosed. Has a frame of 56. Electric motor 1/2 to 1 1/2 hp. You can get these units as single phase, three phase. Then you have units that are pump/motor and tank combo’s. It can come with a five or ten gallon tank with the pump and motor. Make sure you tell the mechanic or sales person you want a certain size tank. It has a mesh strainer, breather and sight glass. It will also have the needed piping for the suction area of the pump.

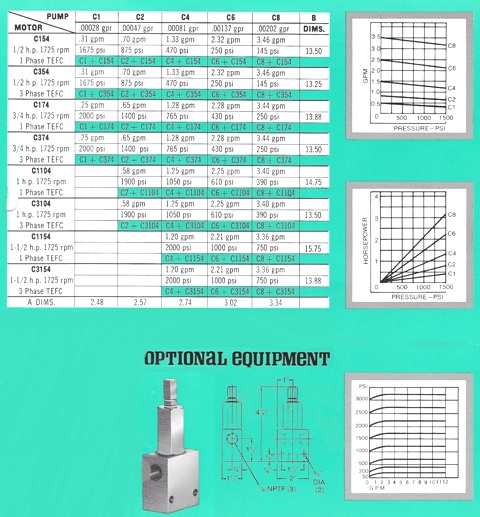

This is on a 1725 rpm/150 ssu oil. The relief valves can be mounted on C models. Flow range 12 gpm. 85005015 Relief valve 50-250 gpm 85005016 Relief valve 200-150 psi 85005017 Relief valve 1500-3000 psi

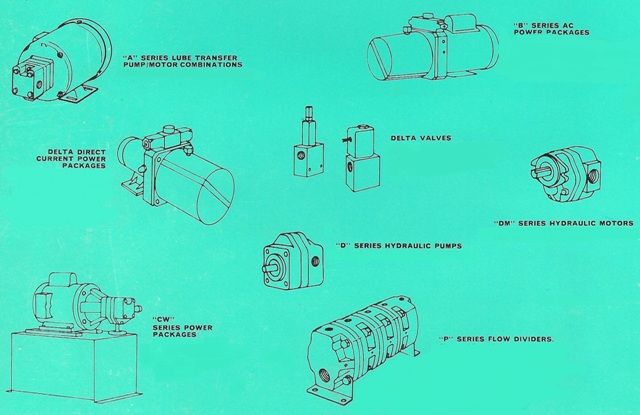

On this diagram these can become any combination you need for your process. You can add electric motors to this also.

If you need help in figuring out what best suits your machines needs, give us a call at 662-871-8403
