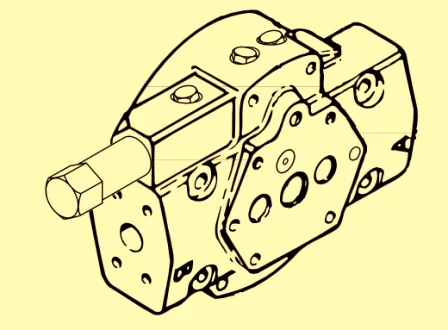

Eaton IPOR End Cover – Models 3320 – 7620 & 3321 – 6421

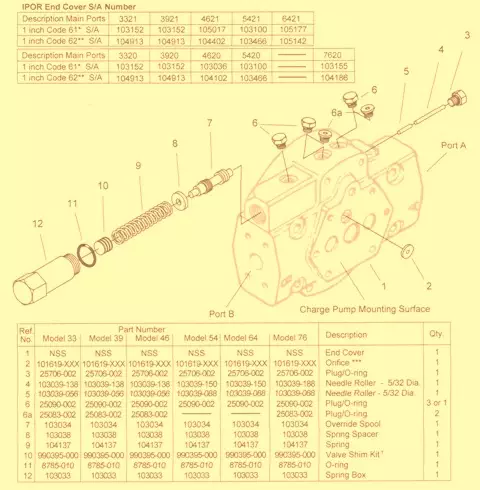

The chart at the top left:

  • *SAE Code 61 split flange 3000 PSI – 3/8-16 UNC 2 B thread bolt ** SAE Code 62 split flange 6000 PSI — 7/16 -14 UNC 2B thread bolt

Bottom chart

*** orifice dia. .028, .036, .044, .052, .057, .065, .073, .094, .102 stake 6 places outer edge for retention To know the pressure range – shim adjustable from 1000 to 6000 PSI Shim .018 = 500 PSI

And if you see a NSS that means there is not one sold by itself.

Call 662-871-8403

[email protected]
