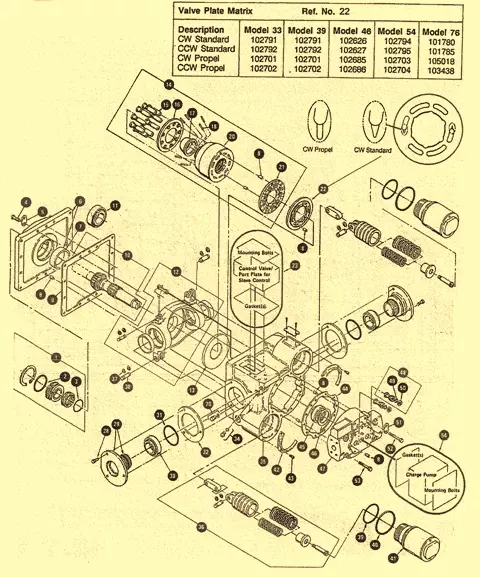

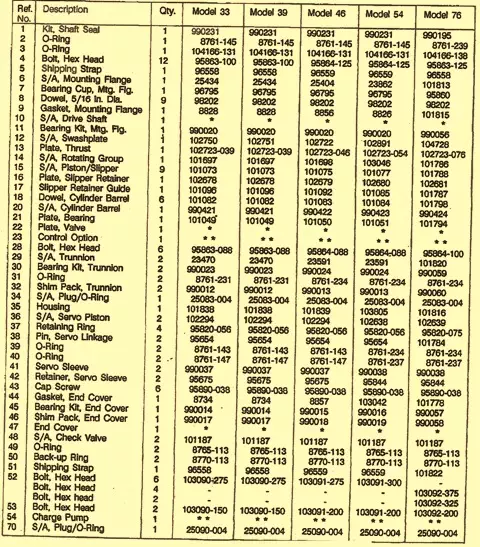

Eaton Pump Ball Guide 33-76 Series

Leave a Comment / cessna, Cylinder Information, dynapower, eaton, hydraulic, motor, neutral lockout switch, packing, packing or seal kit, parker, pump, racine, reservoir, rexroth, seal kit, sundstrand, sundstrand sauer danfoss, swashplate bearing, tie rod end cylinder, torquemotor, vane pump, Vane Pump Information, vee packing / By
Thrust Plate 102723-064 is thin

Thick Plate is 101315

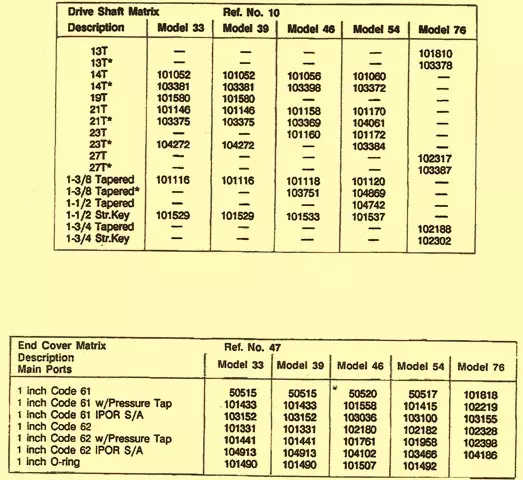

101540 – 3/8 square key for 1 1/2 straight keyed shaft 102305 7/16 square key for 1 3/4 straight keyed shaft 101317 woodruff key for 1 3/8 and 1 1/2 tapered shaft 102189 woodruff key for 1 3/4 tapered shaft 96898 slotted nut for 1 3/8 and 1 1/2 tapered shaft 102320 slotted nut for 1 3/4 tapered shaft * splined drive end for B pad charge pump

Code 61 SAE split flange, 5000 PSI, drilled and tapped for 3/8-16 UNC 28 thread bolt Code 62 SAE split flange, 6000 PSI, drilled and tapped for 7/16-14 UNC 28 thread bolt

If you need more info on this unit, call us at 662-871-8403
