Cylinder Air Clamps

Leave a Comment / AS hydraulic cylinder, ASH hydraulic cylinder, ASL hydraulic cylinder, cessna, cylinder accessories, cylinder check, Cylinder Information, dowty hydraulic pumps and motors, dynapower, eaton, hall 300 series pumps and motors, hall H1500 Pump, hall series 101, hydraulic, hydraulic valves, M and 4 Series Amplifier Air Driven, motor, Neque, neutral lockout switch, packing, packing or seal kit, parker, pump, racine, radiators, reservoir, rexroth, rotary index table, seal kit, series 25 valves that are base mounted, Series 750 Hall pump/motor, series A heat exchanger, Series B Hydraulic Cylinders, series HSS cylinder, series k heat exchanger, series ss cylinders, small bore size cylinders, sundstrand, sundstrand sauer danfoss, swashplate bearing, tie rod end cylinder, torquemotor, Uncategorized, valve in head cylinder, valve manifold, vane pump, Vane Pump Information, vee packing / By

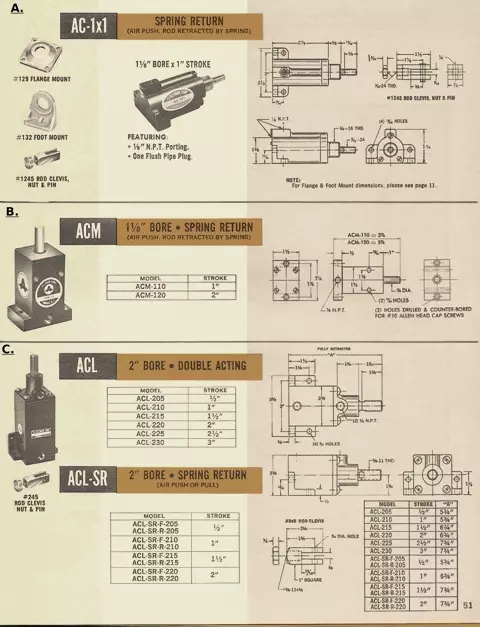

A. Has a 1/8″ NPT porting and a flush pipe. It comes with a mounting nut that has a flange or foot mount only. Spring force 10lbs at rest and 20lbs at full stroke.
B. has a non threaded rod, 1/8 : NPT porting and bronze rod bearings. Spring force – ACM 110 – 10 lbs at rest/20lbs at full stroke ACM 120 – 5 lbs at rest/10 lbs full stroke C. Has low friction and last a long time by having nylon rod bearing and 1/4″ NPT porting. ACL SR F – rod retracted by spring / ACL SR R – rod is out by spring “F” Models – spring force of 10 lbs at rest and 35 lbs full stroke “R” Models – spring force of 20 lbs at re4st and 40 lbs at full stroke

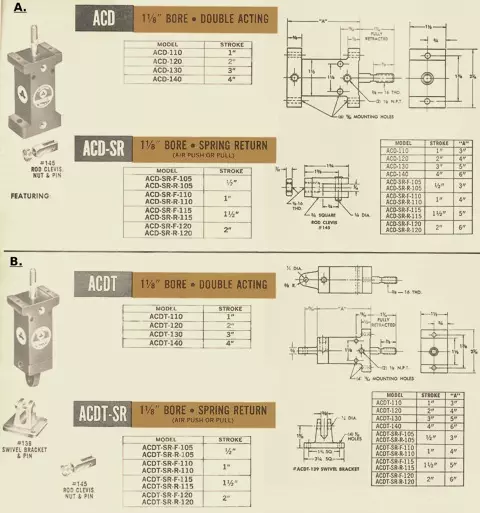

A. Has a bronze rod bearing and 1/8″ NPT porting. ACD SR F rod retracted by spring / ACD SR R let out by spring. Spring force is 15 lbs resting and 30 lbs full stroke
B. Has a swivel mounting, bronze rod bearing and 1/8″ NPT porting. ACDT SR F – rod goes in by spring / ACDT SR R – rod let out by spring. Spring force is 15 lbs resting and 30 lbs full stroke. Also on rod clevis sizes, look at chart.

If you need further information on these clamps cylinders for for cylinder question in general, call us at 662-871-8403
