Racine Volume Vane Pump PSQ

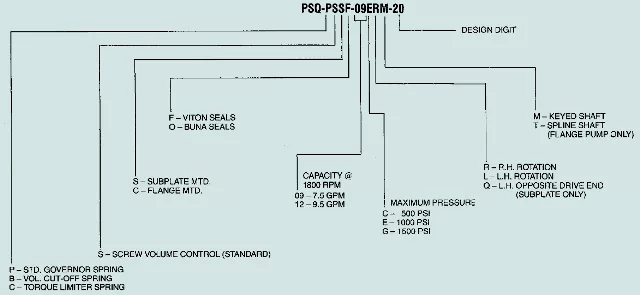

Below is the chart that tells the meaning of what the letters and numbers mean in the model number of a pump or motor.

Viton seal kit 794426 have a shaft seal that is apart of the body assy. Buna seal kit is no long available. *It has 3 orings 3/32×13/16×1

Viton seal kit 794426 have a shaft seal that is apart of the body assy. Buna seal kit is no long available.
You should tighten up your bolts a little at a time, so you don’t strip out he screws

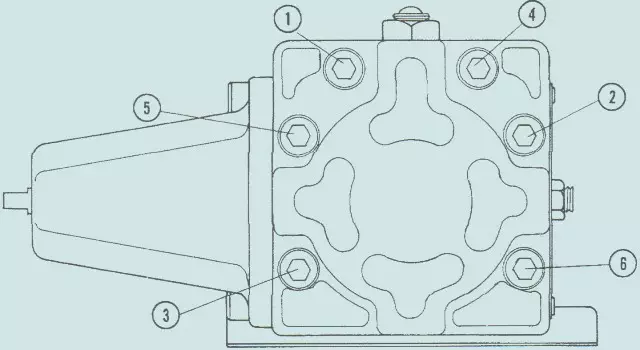

The order to tighten up screws

1 A. 6 screws on rear cover 50lbs in numerical order

1B. 6 screws on rear cover 36040in – lbs numberical order

2 Before you put it together put some kind of lubricant on face of rotor.

3 Ball #492440 needs to be peened into socket after you try it out and thrust screw setting needs to be checked again.

Subplate Mounted

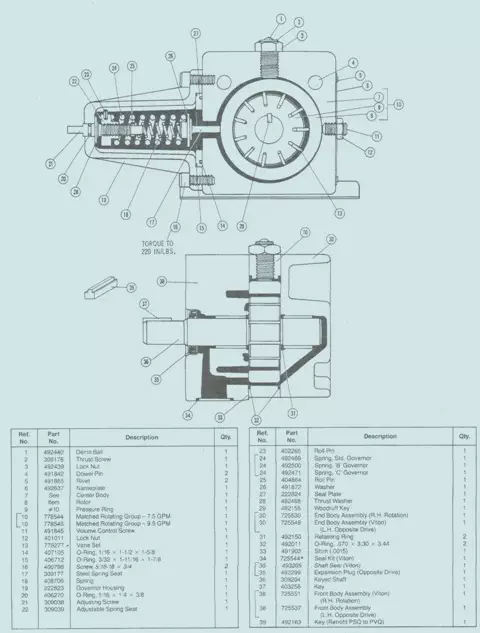

Ref.# Part # Description Qty 1,4 400814 Cap Screws 2 2,3,5,6 400807 Cap Screws 4

Flange Mounted

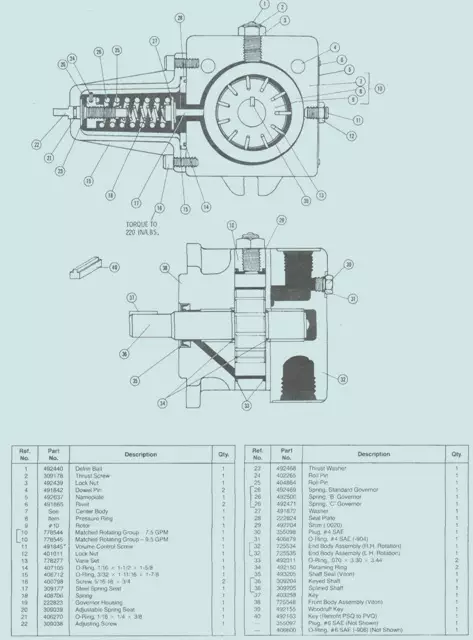

Ref.# Part # Description Qty 1,4 400816 Cap Screws 2 2,3,5,6 400815 Cap Screws 4

Give us a call if you need more help on this unit.
